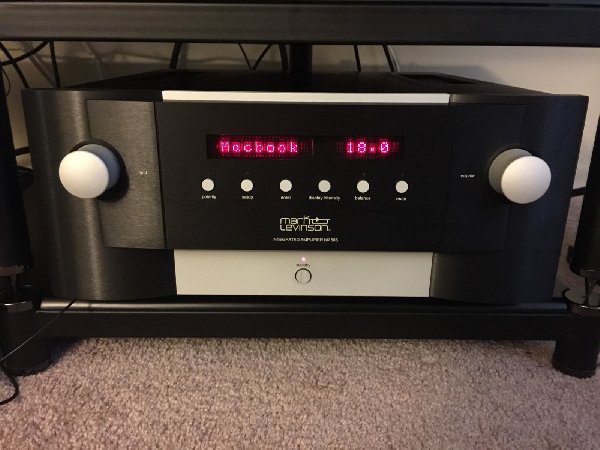

Mark Levinson No. 585 Integrated Amplifier -- $5600 137,900 CZK
Up for sale is a must mint like new ML #585 with low hours. This unit has zero blemishes, remote still has plastic
on it. Comes with all original accessories and packaging.
Output Power: 200W RMS per channel @ 8 O, 20Hz – 20kHzDamping Factor: >400 @ 20Hz, referred to 8 O
Frequency Response: 20Hz – 20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB
Signal-to-Noise Ratio: >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output –
maximum volume setting
Voltage Gain: 40.7dB (maximum volume setting)
Total Harmonic Distortion: 5.5V RMS (RCA & XLR)
PREAMPLIFIER SECTION: DIGITAL
Sample Rates/Bit Depth: PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz/up to 32-bit; DSD: Native,
single- and double-speed
GENERAL
Analog Audio Connectors: 3 pairs single-ended inputs (RCA); 1 pair balanced inputs (XLR); 1 pair single-ended line
outputs (RCA); 1 pair loudspeaker outputs ("Hurricane" binding posts w/banana sockets that accept spade lugs with
1/4" (6.3mm) spacing up to 1/8" (3mm) thick)
Digital Audio Connectors: 1 balanced AES/EBU input (XLR); 2 coaxial S/PDIF inputs (RCA); 2 optical inputs (Tos-
Link); 1 asynchronous USB input (USB-B)
Control Connectors: 1 RS-232 port (RJ-12 connector); 1 IR input (1/8" phone jack); 1 programmable 12V DC trigger
output (1/8" phone jack), 100mA maximum; 1 programmable 12 DC trigger input (1/8" phone jack); 1 Ethe
et port
(RJ-45 connector)
Mains Voltage: 100V AC, 115V AC, or 230V AC (factory-set)
Power Consumption: Maximum 1000W (power on)
Unit Dimensions (H x W x D): 6.9" (175mm) – without feet; 7.59" (193mm) – with feet x 17.25" (438mm) x 19.95"
(507mm)
Packaging Dimensions (H x W x D): 19" (483mm) x 26" (660mm) x 26" (660mm)
Weight: 72 lb (32.6kg) – net; 96 lb (43.4kg) – with packaging
